Autochecks Results and 3D Feedback

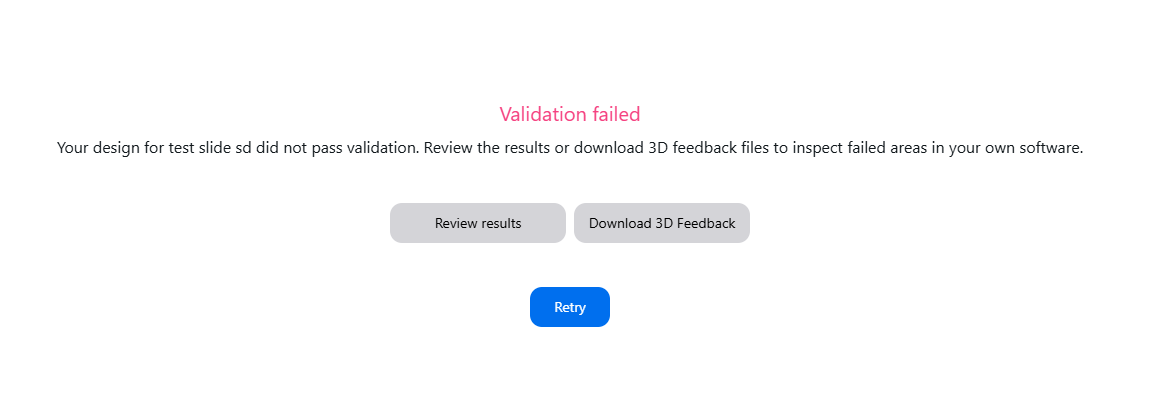

When the validation of upload design fails, you can Review Results and Download 3D feedback.

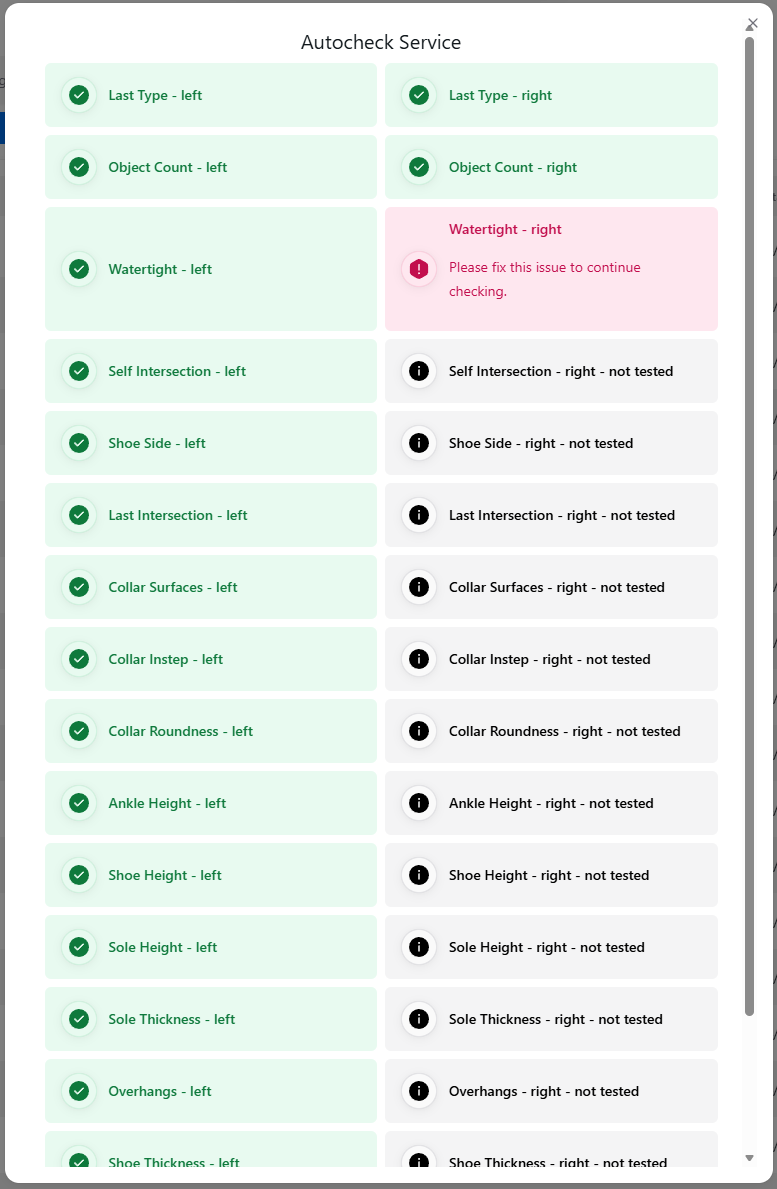

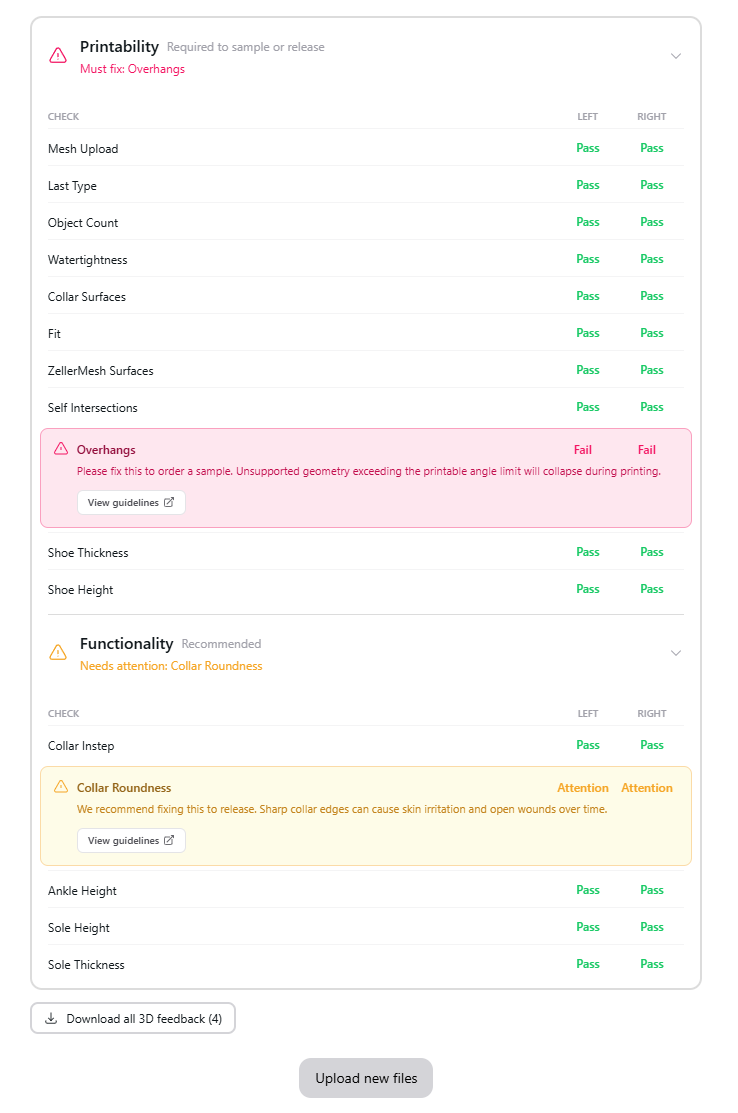

The Review Results button will open a new window that contain a list of checks per side - checked independently. The checks can be displayed in three states.

  • Green Colour - Validation Success
  • Red Colour -  Validation Failed
  • Grey Colour - Not Tested



The Download 3D Feedback button allows you to download a ZIP folder with STLs per side related to each failed check. STL can represents faces of original design that triggered the failure result or reference geometries related to specific check.

When load your 3D modelling software, these feedback meshes will overlap with original upload files, keeping same position in space.

Please adjust your model - no feedback meshes are created when passes all the checks.
