Self-intersections

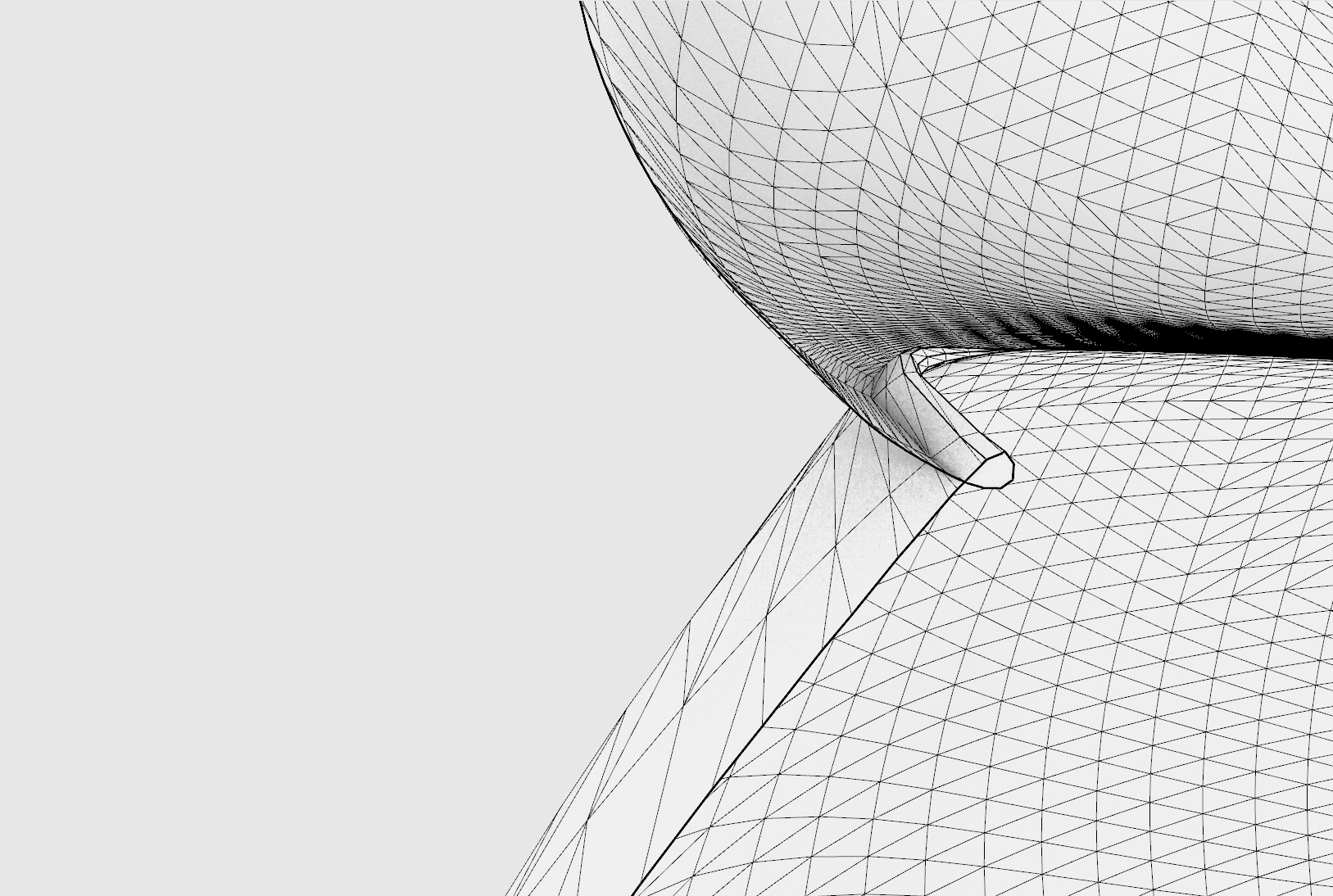

Check if the shoe self-intersects, when some faces cross other faces. Self intersection can result in printing defects which compromise the final quality of the product.



When Rejected:

  • Avoid areas with high concentration of small faces,
  • Created by not clean mesh operations (boolean logos)
  • Created when joining surfaces
  • Created during displacement maps.

Establishing a clean 3D modelling workflow plays a major role in preventing watertight and self-intersection issues.

SUBD(shape)> NURBS OR MESH(details)> STLS



FEEDBACK STLs

Autocheck exports the mesh faces from the shoe where was detected self-intersection.

  • right_self_intersection_faces.stl
  • left_self_intersection_faces.stl
