Shoe Alignment

For further processing your files must be uploaded in the same orientation as the provided Zellerfeld Lasts.

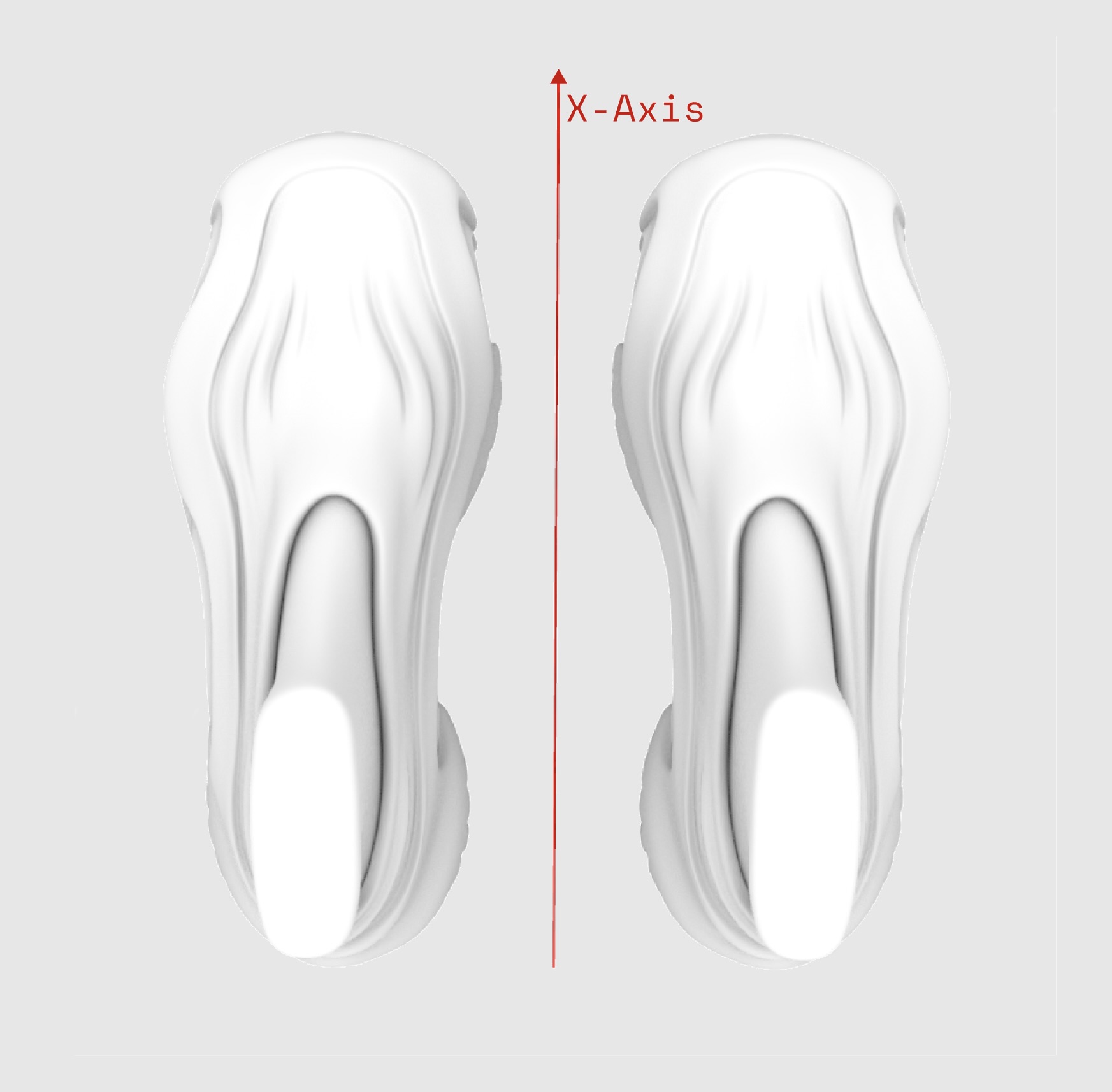

X-ALIGNMENT

All files must have the length direction aligned with the Global X-Axis.

When Rejected:

Please rotate orthogonally (90, 180, 270 Degree) around the Z-Axis or plane XY.

X-DIRECTION

The front of the shoe is aligned with the X-Axis direction

When Rejected:

Please rotate your models 180° around the Z-Axis or XY Plane.

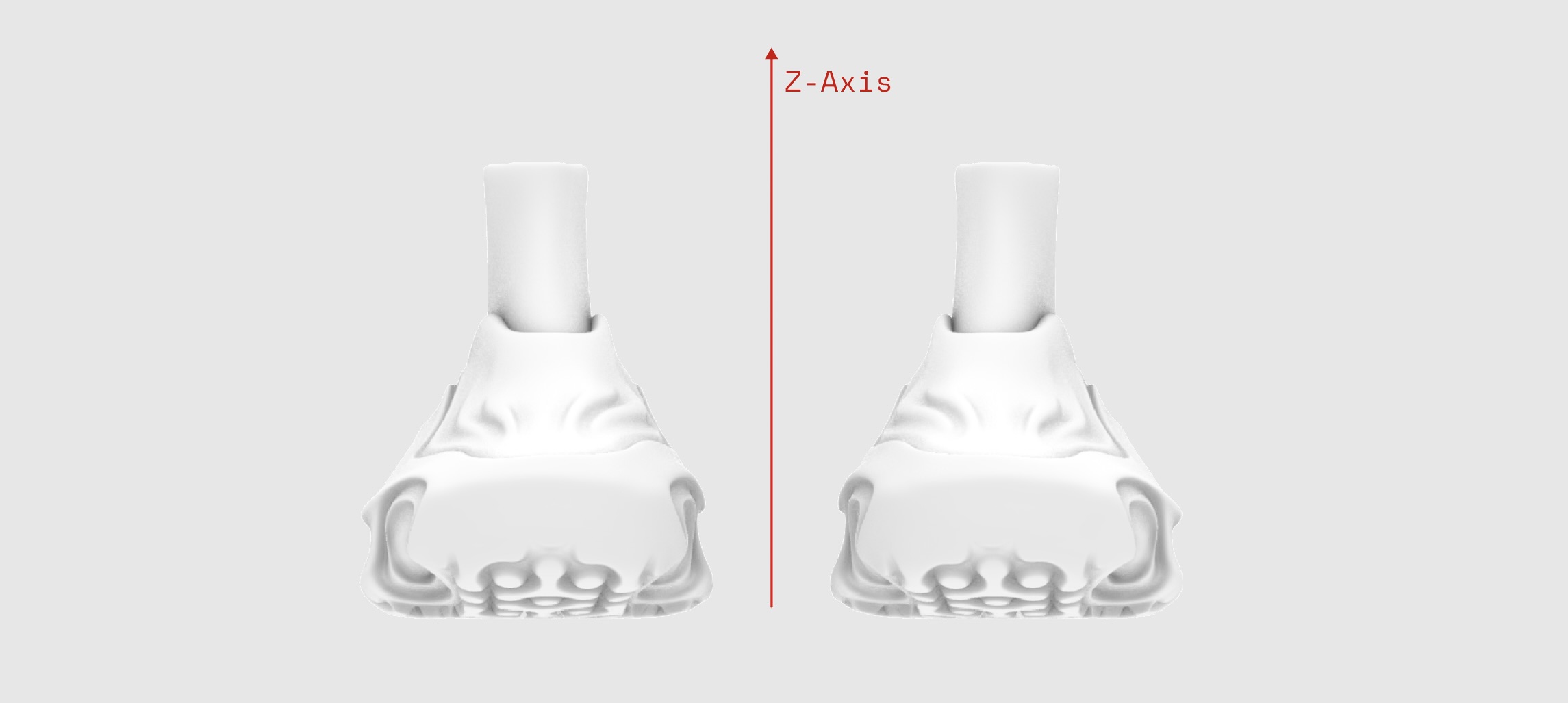

Z-ALIGNMENT

All files must have the height direction aligned with the Global Z-Axis.

When Rejected:

Be aware that OBJ files have the Y-Axis positioned in the vertical direction. If that is your case, then you must rotate the 3D models to have the height direction aligned with the Z-Axis before exporting.

Z-DIRECTION

All uploaded files must not be upside down the Z direction.

When Rejected:

Please rotate your models 180° around the X-Axis or YZ Plane.
