How to Render your assets for Marketing Assets

The Blender toolkit developed by Darijan allows you to apply official Zellerfeld Zellermesh textures directly onto your 3D models inside Blender. It ensures accurate texture mapping and material behaviour so your renders and animations reflect the real printed geometry, helping you create sharper visuals, stronger storytelling, and more elevated footwear presentations for launch and marketing use.

1. Install the Add-ons

Open Blender. Go to Edit > Preferences > Add-ons.

Navigate to the Add-ons tab

In the top right corner, open the dropdown menu and select Install from Disk.

Locate the Add-ons folder and install both .py files. attached

2. Download the Textures

Download the texture files from the Patterns attached.

Save them somewhere easy to access.

3. Import Your Submitted Models

Import the .stl files submitted to Autocheck.

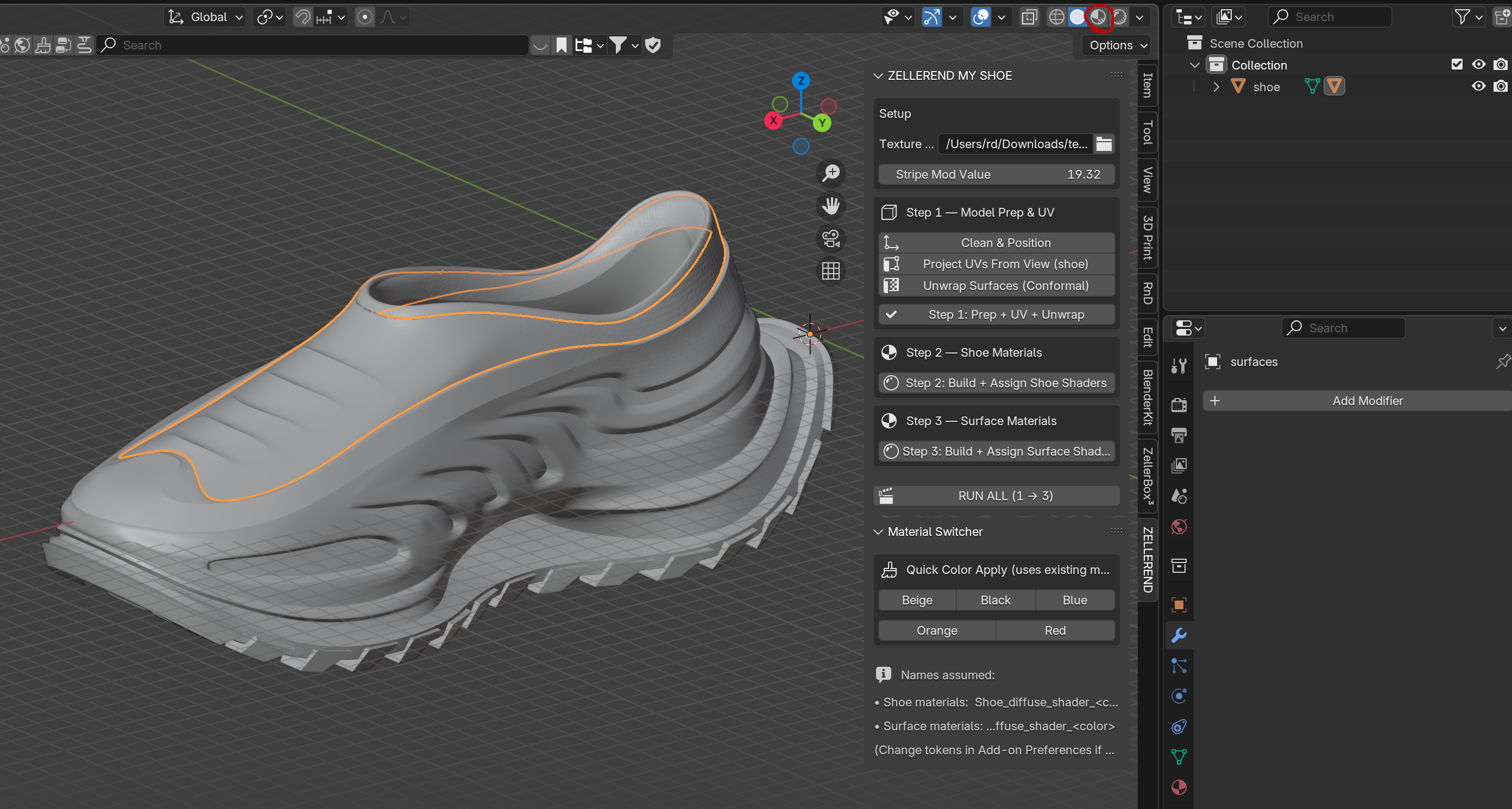

Rename the imported objects exactly:

• shoe
• surfaces

Case does not matter. This naming is required for the toolkit to function correctly.

4. Apply Zellerfeld Textures

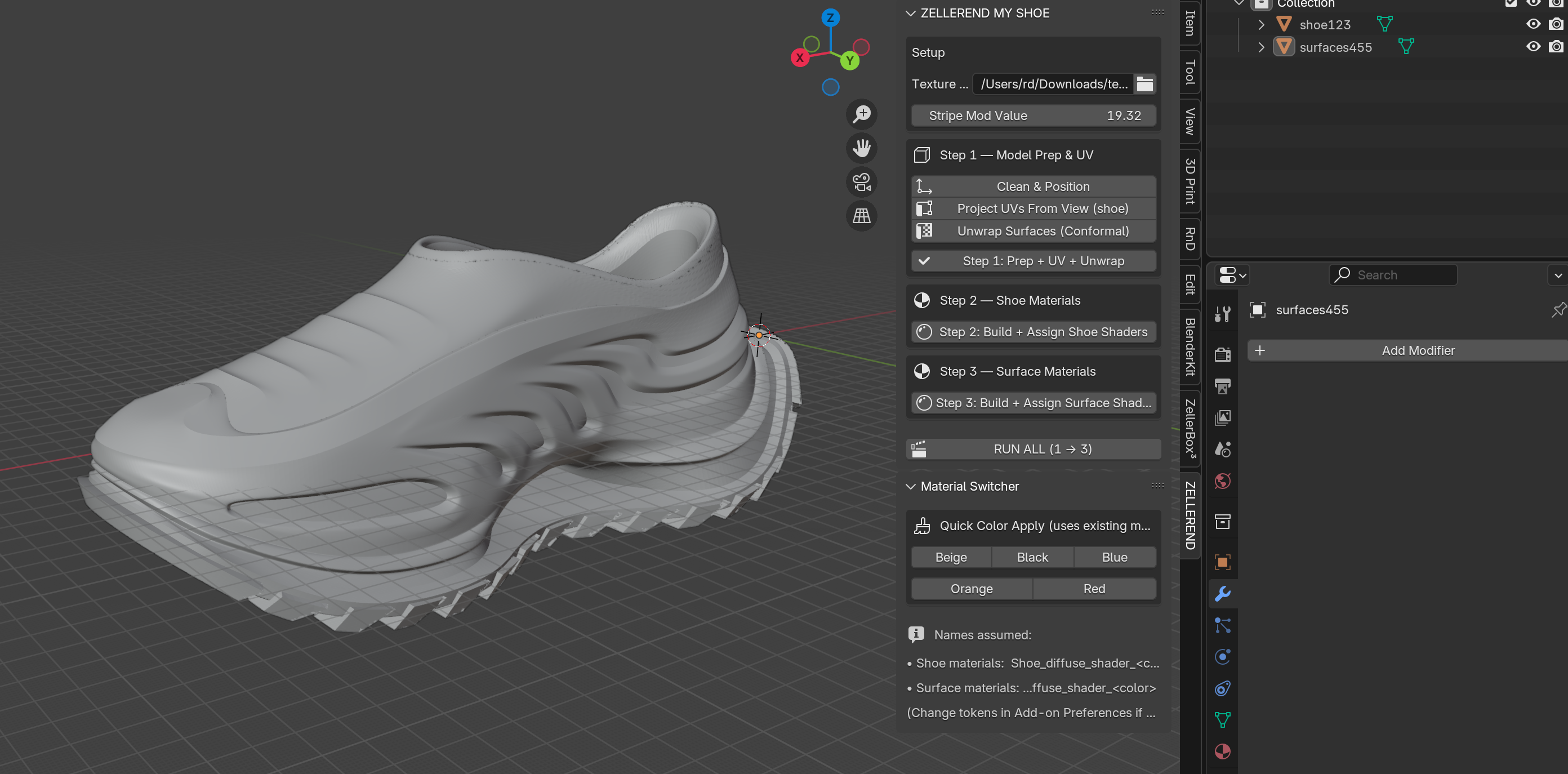

After import and renaming, open the ZELLERFELD tab in Blender.

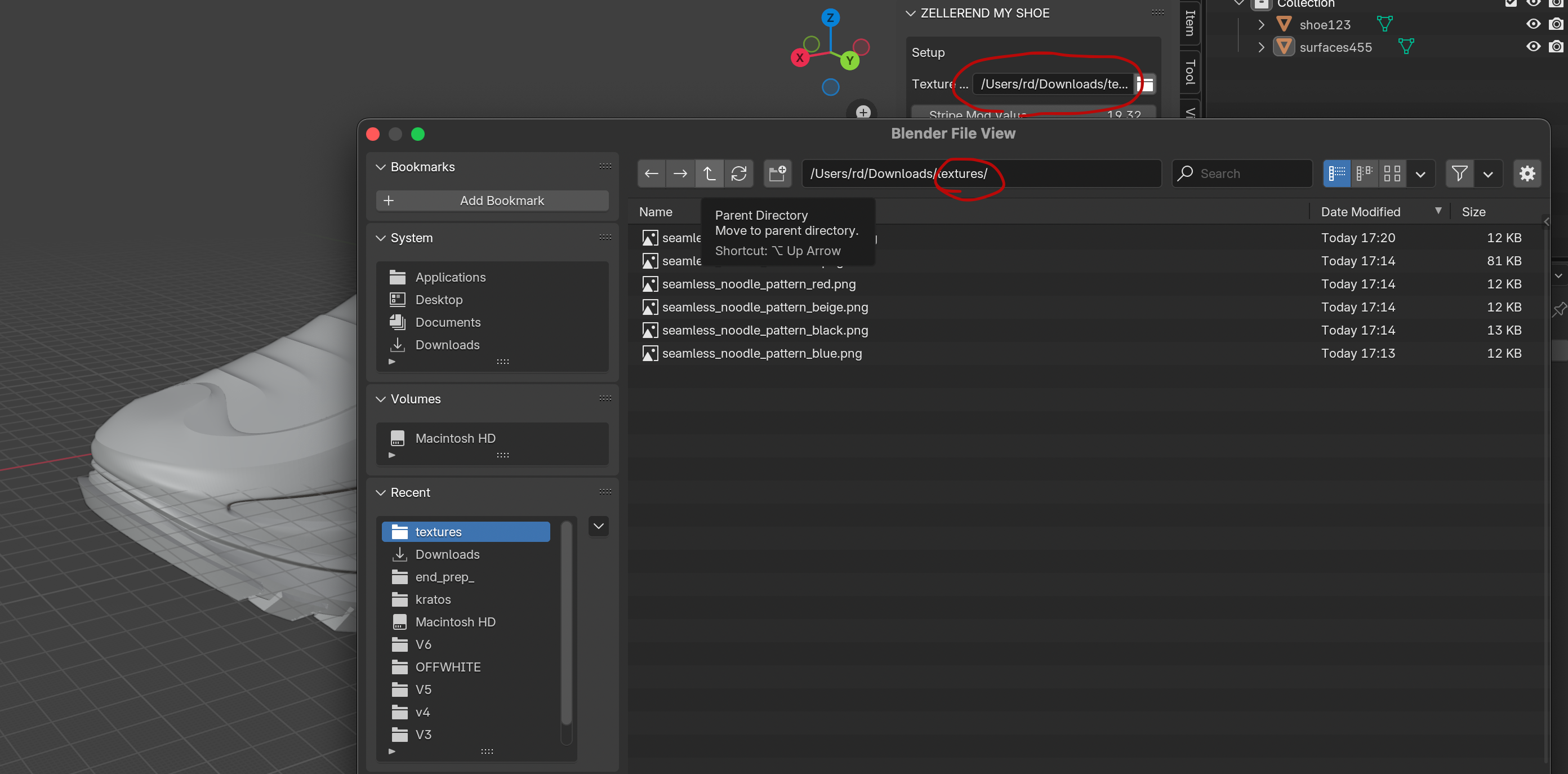

In the Setup section, import the downloaded textures folder.

Scroll to the bottom and click RUN ALL (1–3).

5. Change Colors

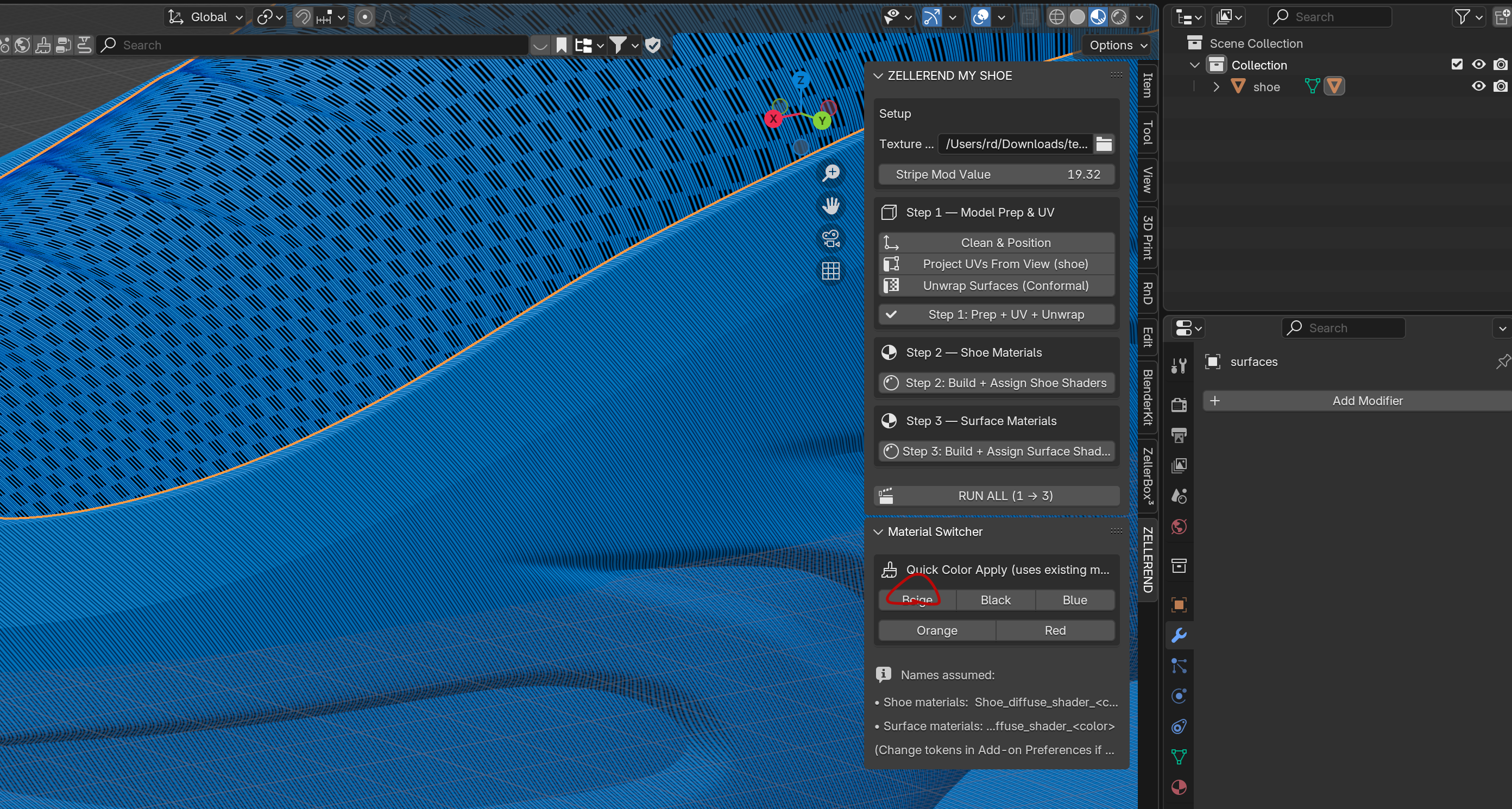

Open the Material Switcher tab beneath the ZELLERFELD tab.

Select from: BEIGE, BLACK, BLUE, ORANGE, RED.
