Last Intersection



To ensure your design will have a consistent FIT customization, it verifies if interior of shoe don't intersect last: shoe mesh vertices should not be inside last volume by more than tolerance of 0.5 mm.



When Rejected:

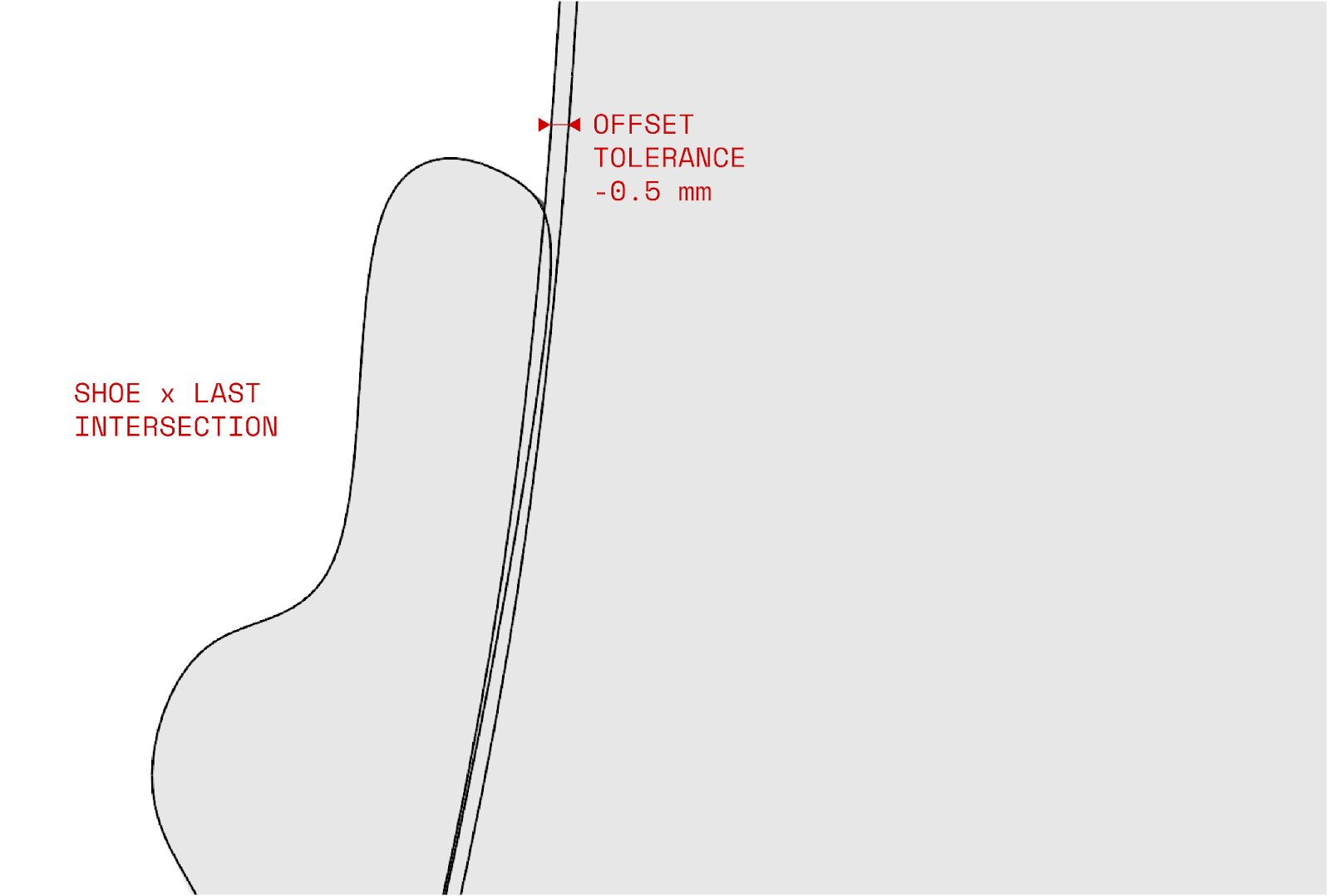

You can offset the last mesh in -0.5 mm (inside direction) and check if any of the shoe vertices is contained inside the last.



FEEDBACK STLs

Autocheck exports the shoe faces that one or more vertices are inside the last beyond tolerance.

  • right_last_intersection_faces.stl
  • left_last_intersection_faces.stl
