Ankle Height

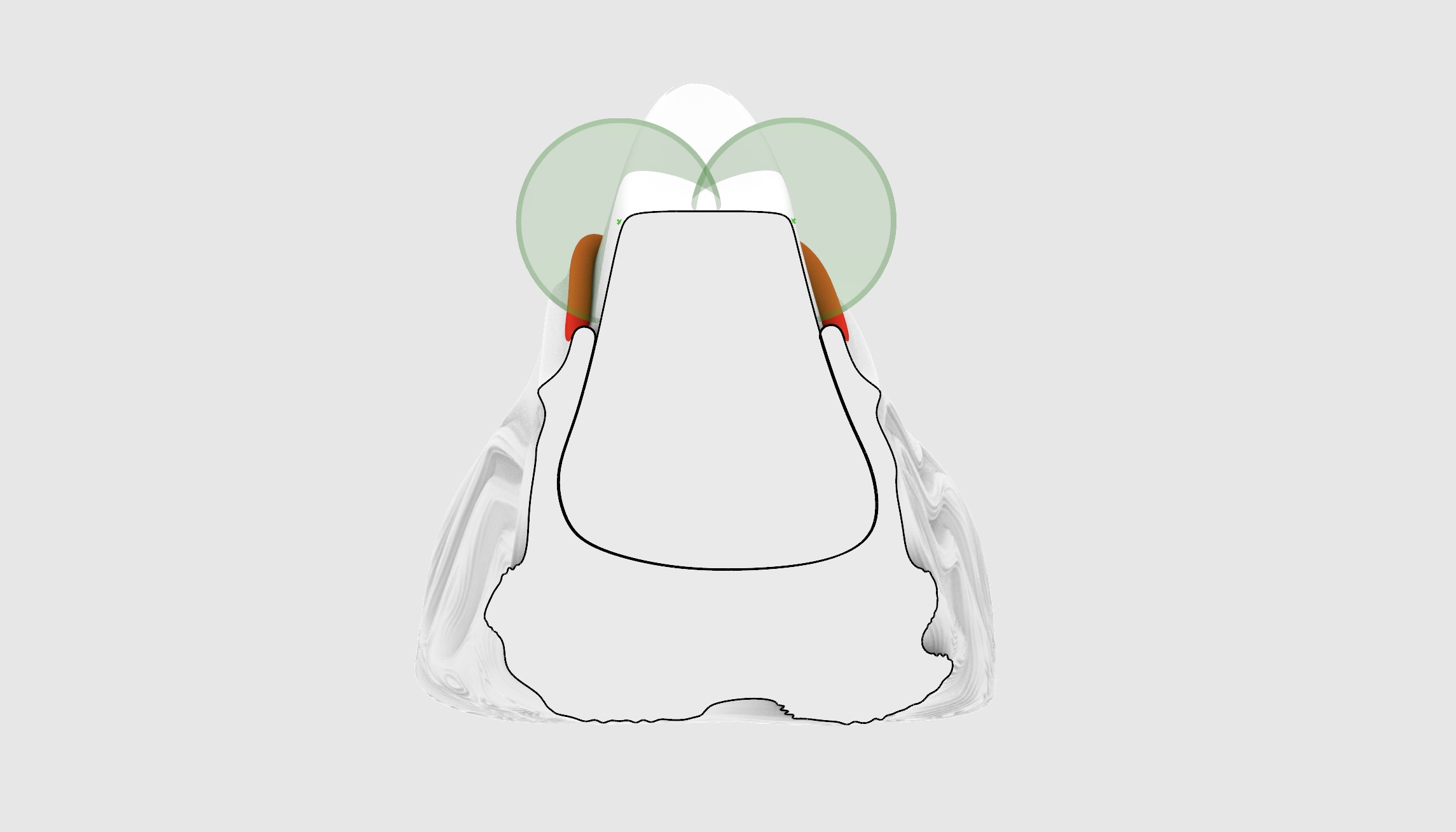

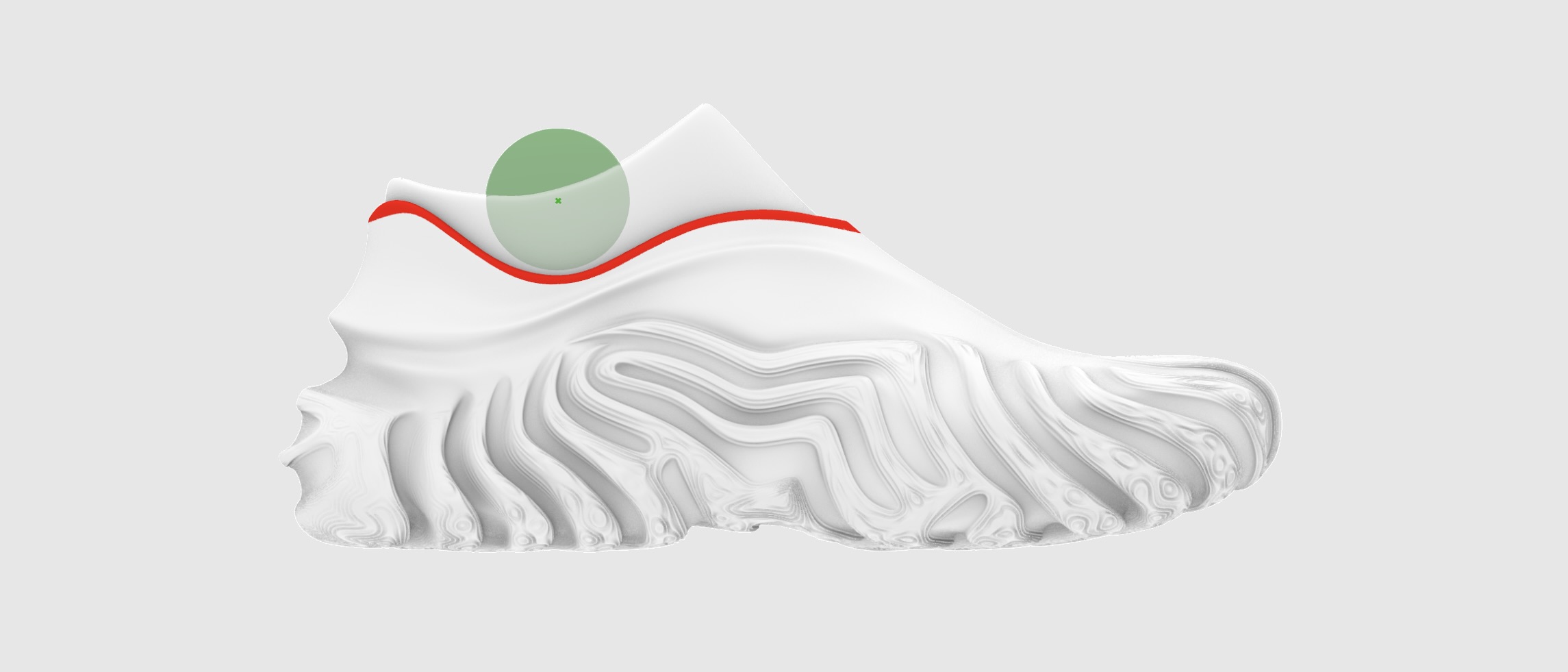

Checks if the Collar region intersects the spherical region that represents the ankle.

Stay below or go above this region!

Disclaimer: image is illustrative, may not represent current ankle-height requirements!

FEEDBACK STLs

Autocheck exports the collar surface mesh faces that intersects with reference sphere regions.

• Collar surface faces:
  • right_ankle_height_lateral_faces.stl
  • right_ankle_height_medial_faces.stl
  • left_ankle_height_lateral_faces.stl
  • left_ankle_height_medial_faces.stl
•  Ankle Height spheres:
  • right_ankle_height_lateral_sphere.stl
  • right_ankle_height_medial_sphere.stl
  • left_ankle_height_lateral_sphere.stl
  • left_ankle_height_medial_sphere.stl
