Shoe Side



We check if the shoe is aligned to with the last for right and left sides.

When Rejected:

  • Left shoe STL contain right shoe and vice-versa.
  • Shoe is not aligned in space with the last.
  • Verify if the gap between interior of the shoe and the last. is more than 0.5 mm

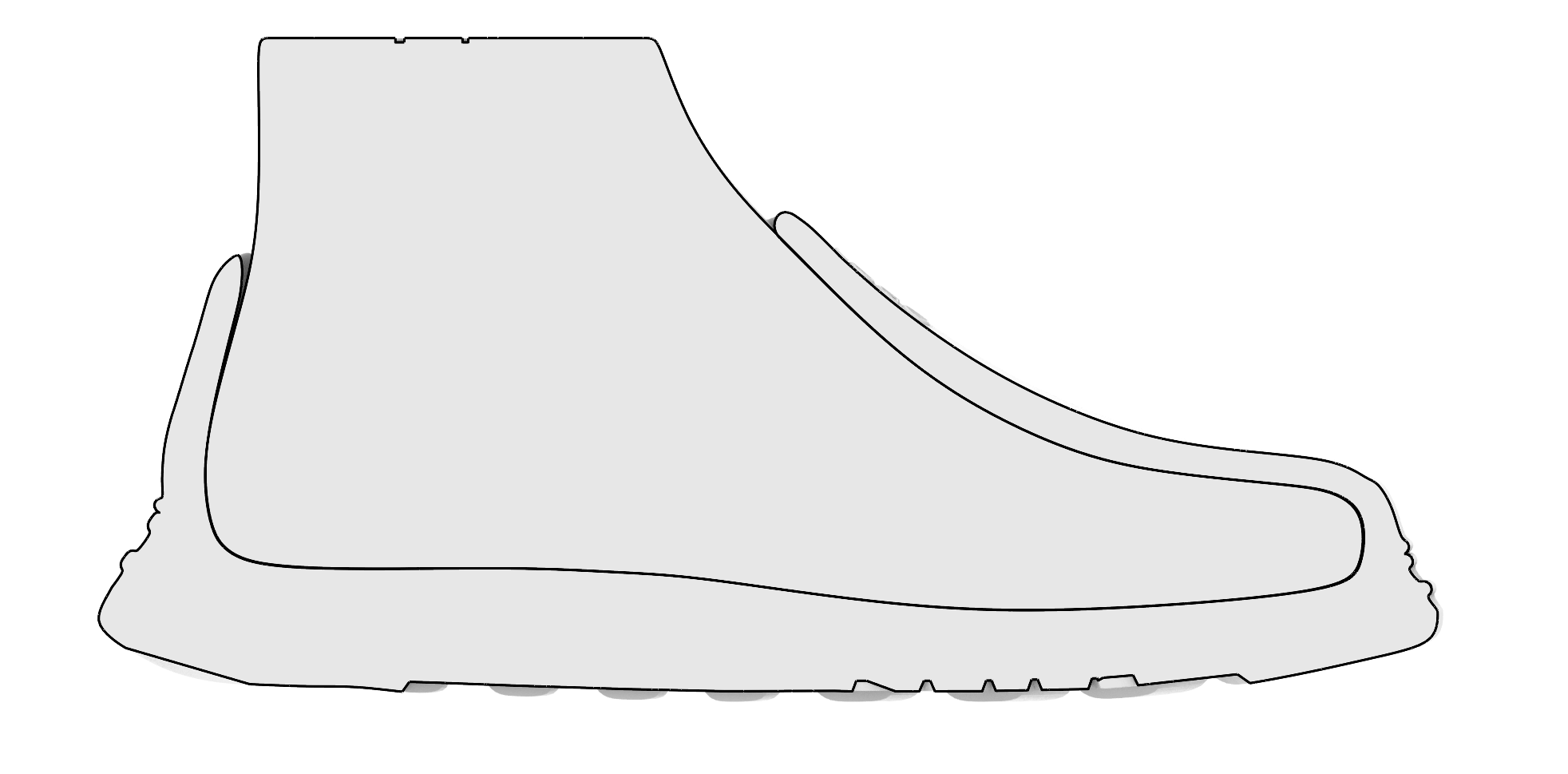

Example of shoe and last alignment:

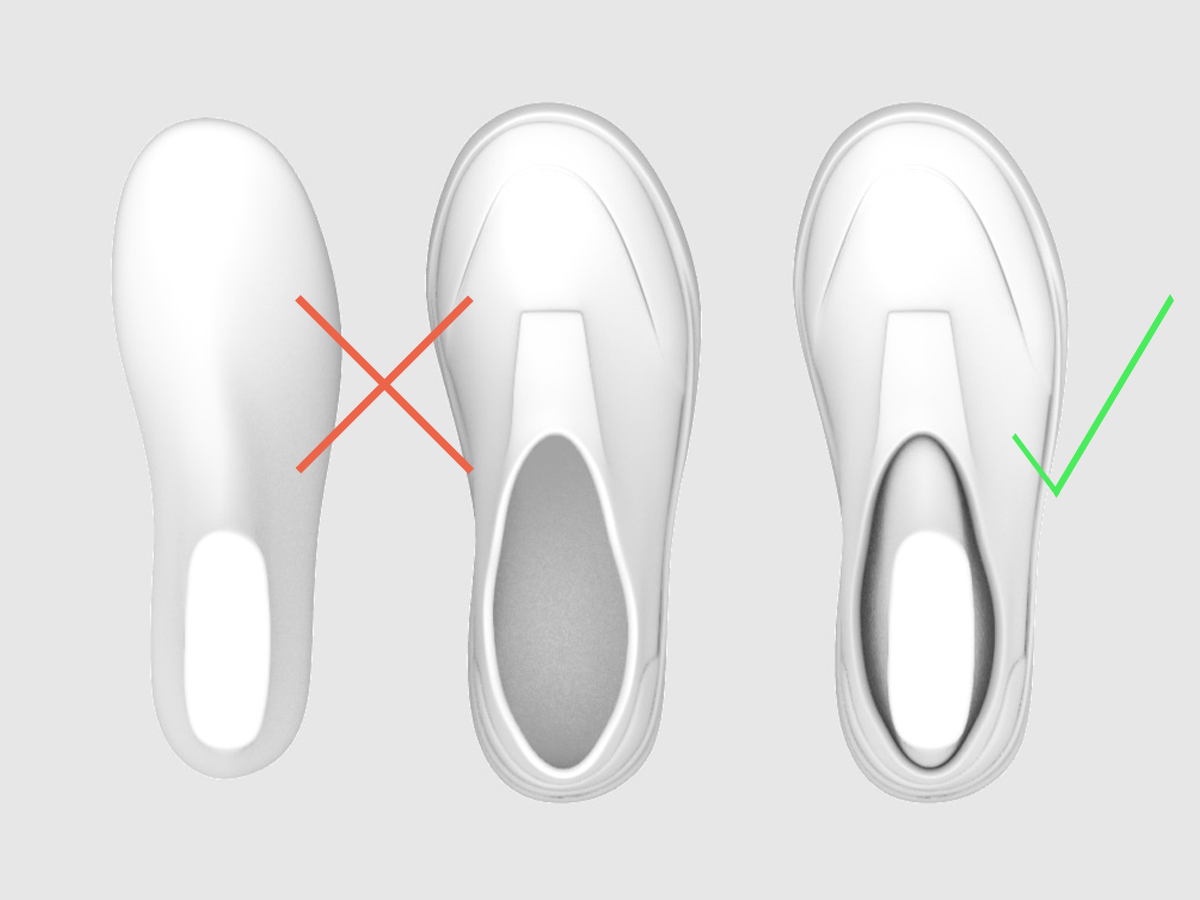

Example of how interior of shoe should match the last:



FEEDBACK STLs

Autocheck exports the shoe faces near the footbed that are distant from the last.

  • right_shoe_side_faces.stl
  • left_shoe_side_faces.stl
