Sole Height



This check verifies the maximum sole height against the following ranges:

  • 12 to 45 mm - Sneaker, Slide, Boot
  • 8.5 to 45 mm - Barefoot

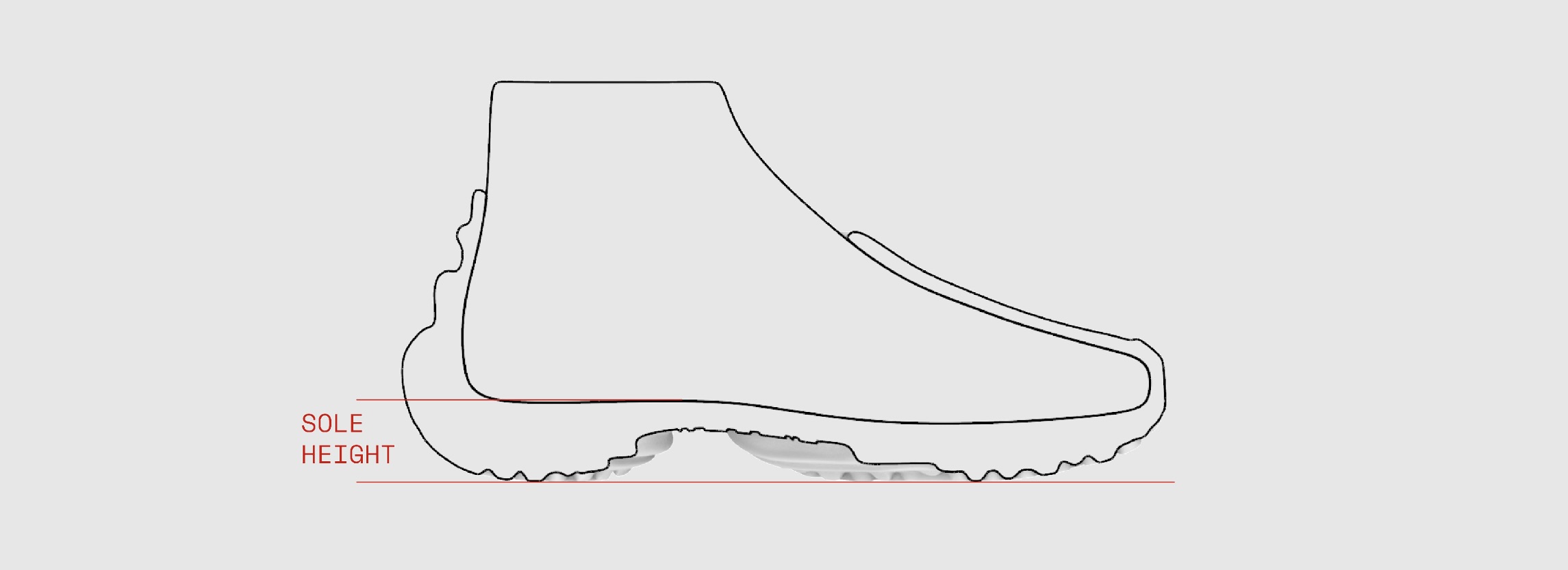

Above you can see how we measure the sole height. We consider the distance between the last bottom in the heel region to the lowest vertex in the shoe mesh.



FEEDBACK STLs

Autocheck exports the mesh faces from the shoe that are below the maximum sole height.

  1. Collar surface faces:
    • right_sole_height_faces.stl
    • left_sole_height_faces.stl
  2.  Sole Height plane:
    • right_sole_height_plane.stl
    • left_sole_height_plane.stl
