Sole Thickness

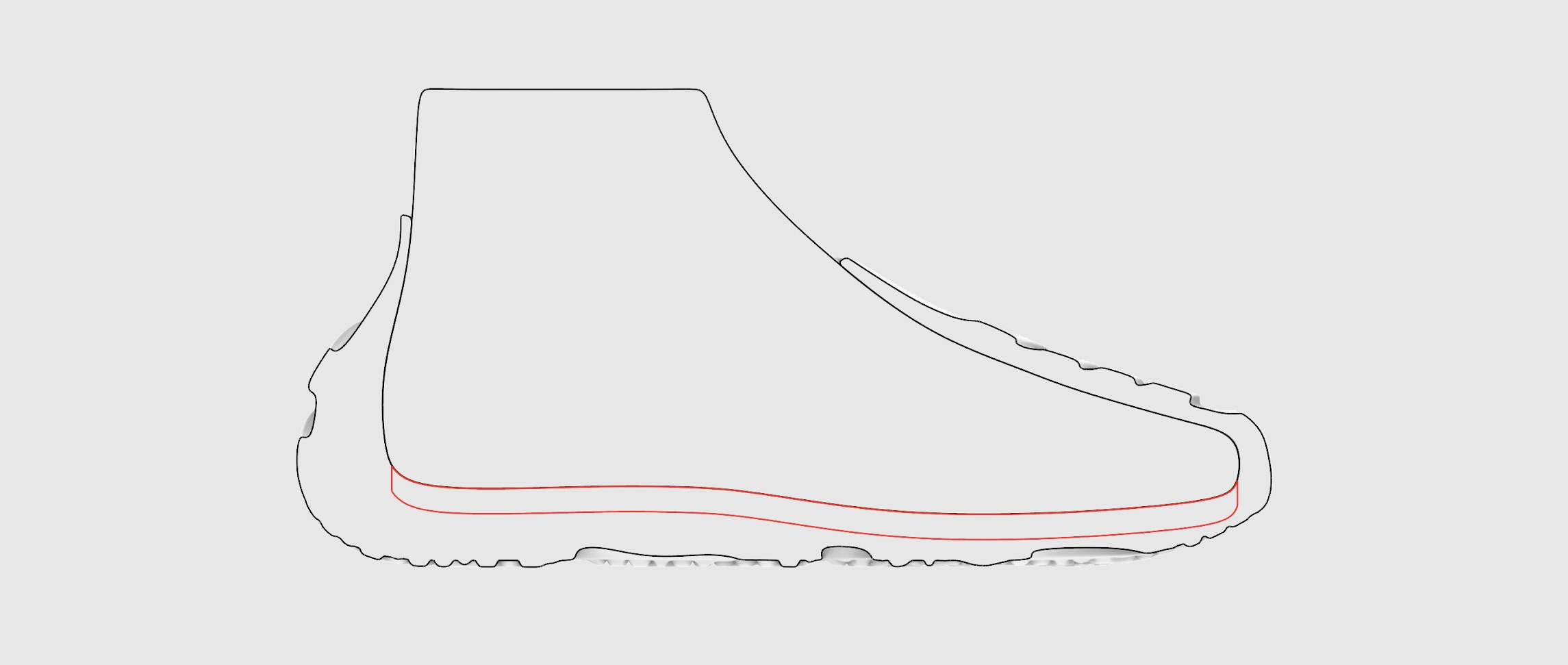

The shoe exterior must not intersect the 3D region below the last that represents the minimum sole thickness.
Please download the sole thickness reference files from our Zellerfeld Template files!
When Rejected:
Adjust the exterior surfaces to not intersect the 3D region.
SOLE THICKNESS - FLIPFLOP

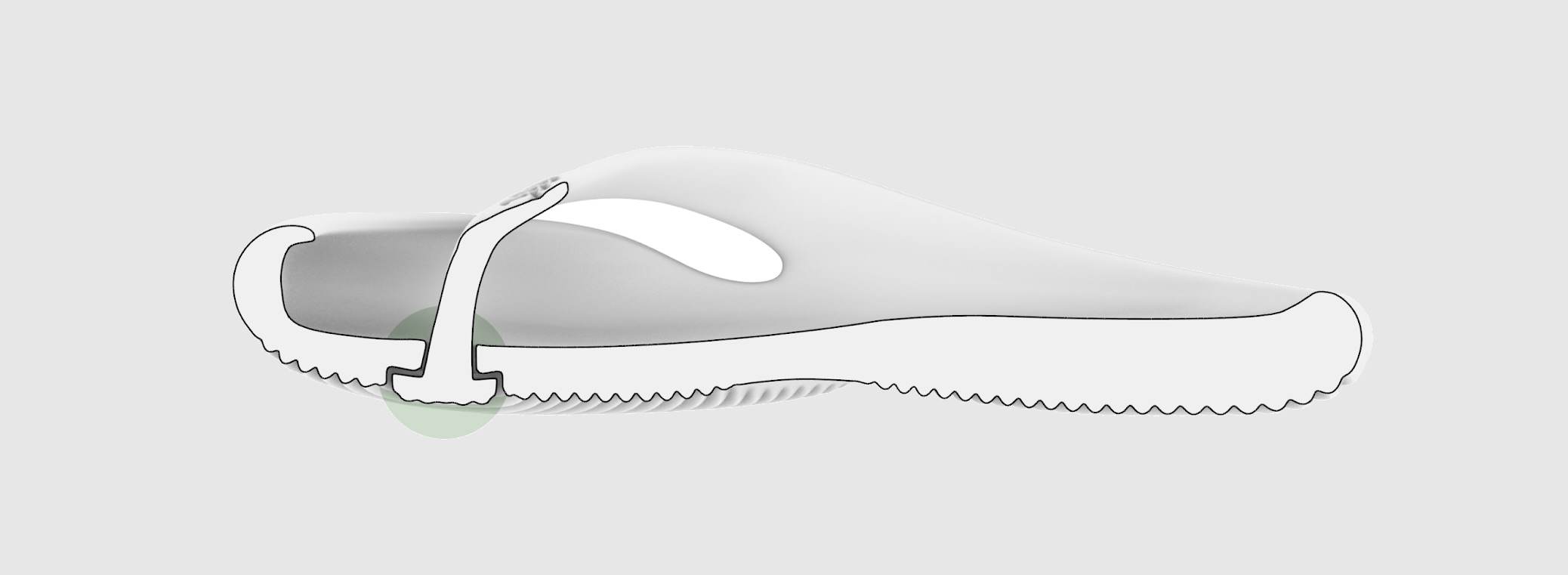

The region around the “knob” (loose part on the outsole) should have a minimum sole thickness of 5 mm.
Knob design tips:
- The gap between the tongue and sole of the shoe should be a minimum of 1.0 mm.
- Follow the outsole profile to not compromise the walking.
FEEDBACK STLs

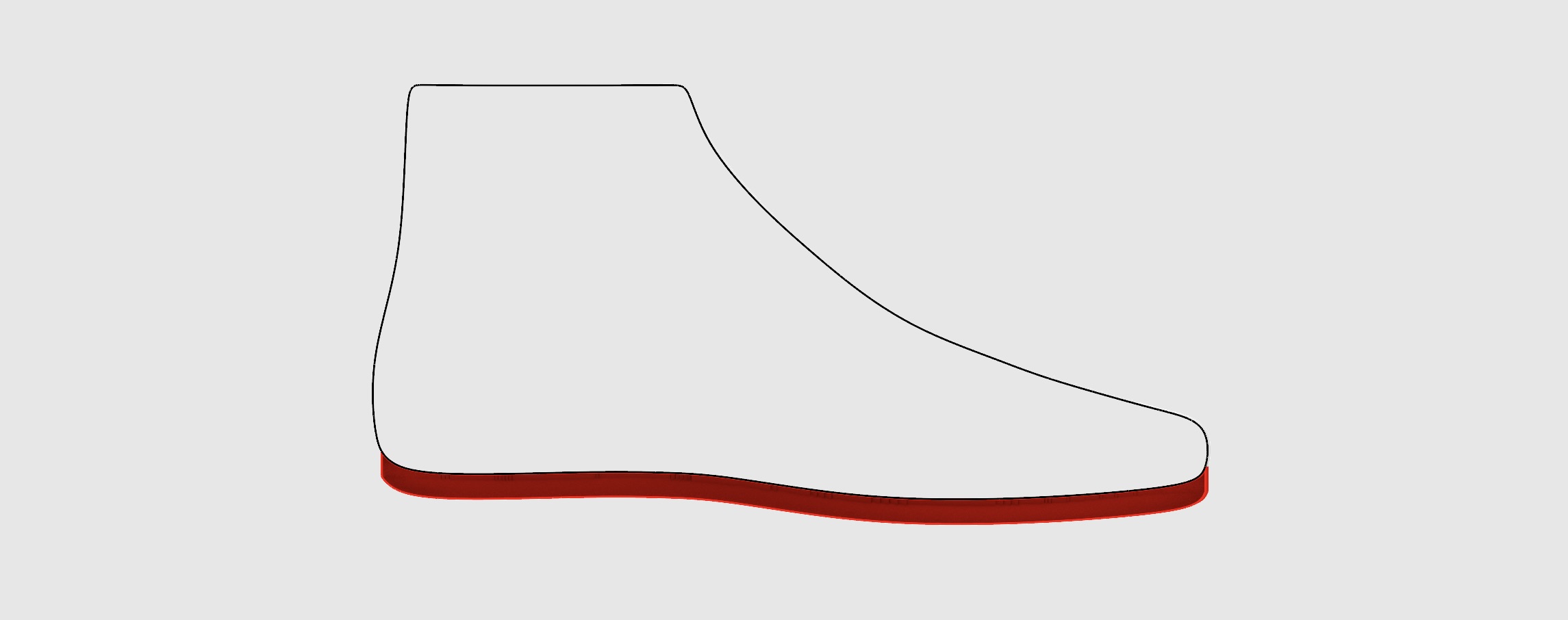

Autocheck exports the mesh faces from shoe where sole thickness is below the limit.
- right_sole_thickness_faces.stl
- left_sole_thickness_faces.stl
